Precision Production Workholding

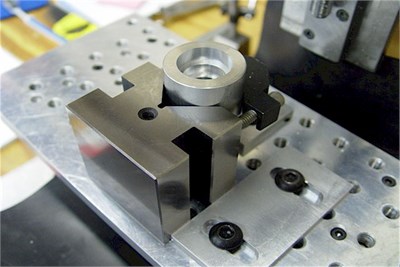

High Repeatability CNC Fixture Systems
CNC fixtures are used in production to manufacture parts repeatedly with micron-level consistency. CNC operators interface with the fixture across every operational phase: setup, continuous run, and teardown. Machining thousands of components demands robust tooling designs that deliver rapid, ergonomic, and completely error-proof part loading.
Error-Proof Poka-Yoke Loading
Asymmetric resting pads and guide pins prevent reverse component loading.
Hydraulic / Pneumatic Clamping
High-speed swing clamps deliver constant clamping tonnage without distortion.
Rigid Vibration Damping
Substantial baseplate mass engineered for high feed rates and surface finishes.
Fast Setup & Teardown
Standardized zero-point locating systems reduce batch changeover downtime.
VMC & HMC Fixturing
Custom hydraulic sequence valves & rotary couplings integrated.
